45KW V-type Air Cooled Condenser

group name: Condenser Coils

Min Order: 1 piece

brand name: Boyi Heat Exchanger Custom Manufacturing

Nearest port for product export: Shenzhen, Guangzhou, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sat, 06 Dec 2025 09:52:57 GMT

contact supplier

Paramtents

Core Component Finned Tube Heat Exchanger
Tube Diameter 7mm, 9.52mm, 12.7mm, 15.88mm
Casing Material Galvanized Sheet, Aluminium, Stainless Steel
Tube Material Copper, Stainless Steel
Fin Material Aluminum, Copper, Stainless Steel

Packging & Delivery

Min Order1 piece

Briefing

BOYI Custom 45KW V-type Air Cooled Condenser

Detailed

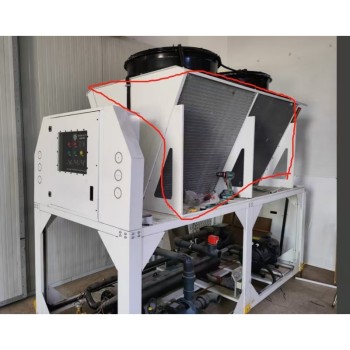

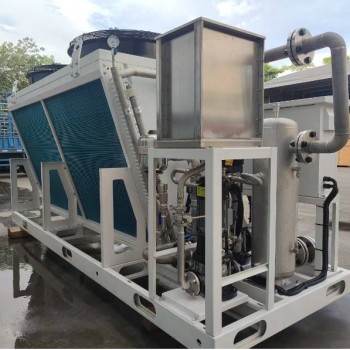

45KW V-type Air Cooled Condenser

This V-type Air Cooled Condenser is 4 Rows 30 Holes with 2 AC Fans.

The core construction uses 3/8" 9.52*0.35mm Copper Tubes and 0.115mm Acrylic Anticorrosive Hydrophilic Aluminum Fins (FPI 2.3mm). Additionally, the Frames are manufactured out of 2.0mm painted steel sheet.

Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.: contact us
