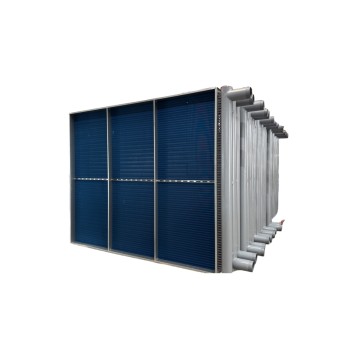

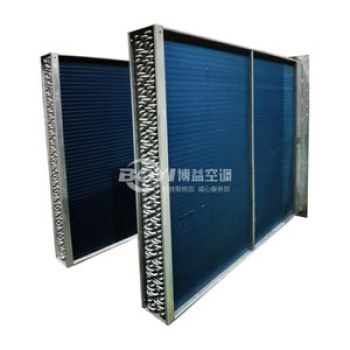

Custom Chilled Water Coils with Stainless Steel Tube and SS Fin

group name: Heating & Cooling Coils

Min Order: 1 piece

brand name: Boyi Heat Exchanger Custom Manufacturing

model: BY-CWC

Nearest port for product export: Shenzhen, Guangzhou, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sat, 06 Dec 2025 08:51:53 GMT

contact supplier

Paramtents

Core Component Finned Tube Heat Exchanger
Tube Diameter 7mm, 9.52mm, 12.7mm, 15.88mm
Casing Material Galvanized Steel, Aluminium, Stainless Steel
Tube Material Copper, Stainless Steel
Fin Material Aluminum, Copper, Stainless Steel

Packging & Delivery

Min Order1 piece

Briefing

Chilled water coils are heat exchange components used in HVAC systems to transfer heat between air and chilled water.

Detailed

Custom Chilled Water Coils with Stainless Steel Tube and SS Fin

Chilled water coils are heat exchange components used in HVAC systems to transfer heat between air and chilled water. They are commonly found in air handlers, fan coil units, and other air-conditioning systems.

How Chilled Water Coils Work

1. Heat Transfer: Chilled water (typically at 40–50°F) flows through the coil’s tubes, while warm air passes over the fins.

2. Cooling Process: The warm air loses heat to the cold coil, cooling and dehumidifying before being distributed into the space.

3. Return to Chiller: The now-warmed water returns to the chiller to be re-cooled.

Materials

1. Aluminum fin

2. Hydrophilic pre-coated aluminum fin

3. Copper tube and fin

4. 304/316 Stainless Steel tube and fin

5. Epoxy resin coatings

Maintenance Considerations

1. Air Filters: Prevent dust buildup on fins.

2. Coil Cleaning: Regular cleaning to maintain efficiency.

3. Water Treatment: Prevents scaling/corrosion in tubes.

4. Freeze Protection: In cold climates, coils must be drained or glycol-mixed to prevent freezing.

Conclusion

Chilled Water Coils are widely used in Air Handling Units (AHUs), Fan Coil Units (FCUs), Dedicated Outdoor Air Systems (DOAS), Data Center Cooling, Commercial & Industrial HVAC Systems due to their reliability and energy efficiency.

Specifications can be tailored to suit each application, with different materials, sizes, noises and cooling mediums available.: contact us
